Talkback P-9003 Headset Substation
3 600 SEK
-Built-in call relay, max 8A
-Call lamp
-Plug for connection of headset or handheld microphone
-CALL button
-Complies with IEC 60945 Standard for Marine Equipment
-RMRS type approval

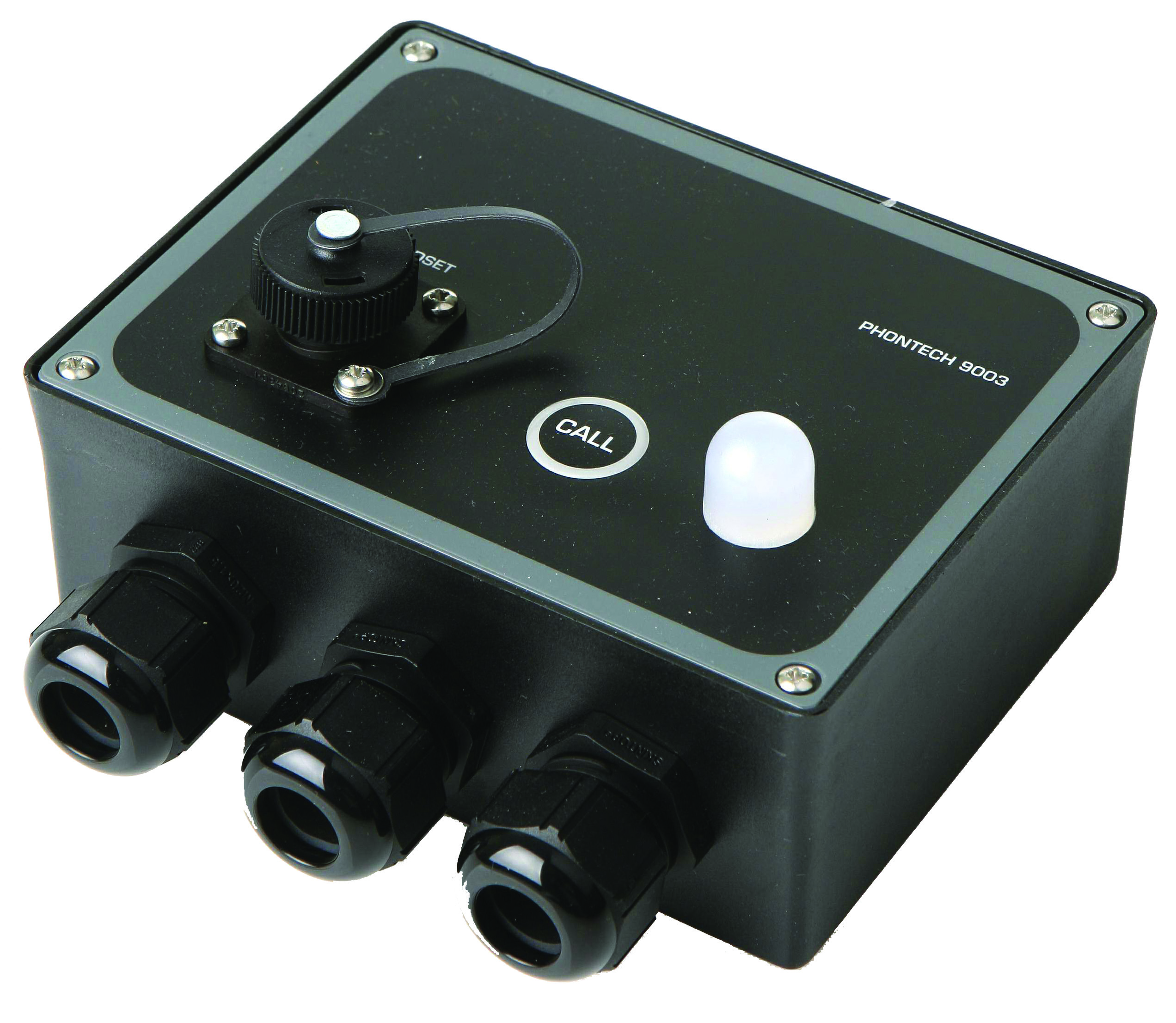

The P-9003 is a weatherproof Command Intercom System (Talk-Back) substation for industrial and noisy environments such as engine, steering gear and thruster rooms. It interfaces an external loudspeaker, external call signal device (flash/rotating light/hooter/siren) and a pluggable hearing protective headset. The unit is equipped with a CALL button for attention request and a call lamp for visual call indication.
- Betala säkert med kort
- Maila oss, vi svarar snabbt!
Beskrivning
Art.nr: 4000017572
MECHANICAL
Dimensions (WxHxD) 130x124x52 mm (depth 72 mm including headset connector)
Weight 0.3 kg
Color RAL 9005/9006
Material PC / ABS blend, ABS
Mounting Wall
Fixing 4 x M3 bolts
Access Front
Cable Entry Bottom/Top
Gland Type 3 x M20
ELECTRICAL
Power Supply From central/line supply
Termination Screw terminals ≤ 1.5 mm2
Compass Safe Distance > 5 m
ENVIRONMENTAL
Temperature -25°C to +55°C (Storage: -25°C to +70°C)
Humidity +93% (at +40°C)
Ingress Protection Rating IP-56
