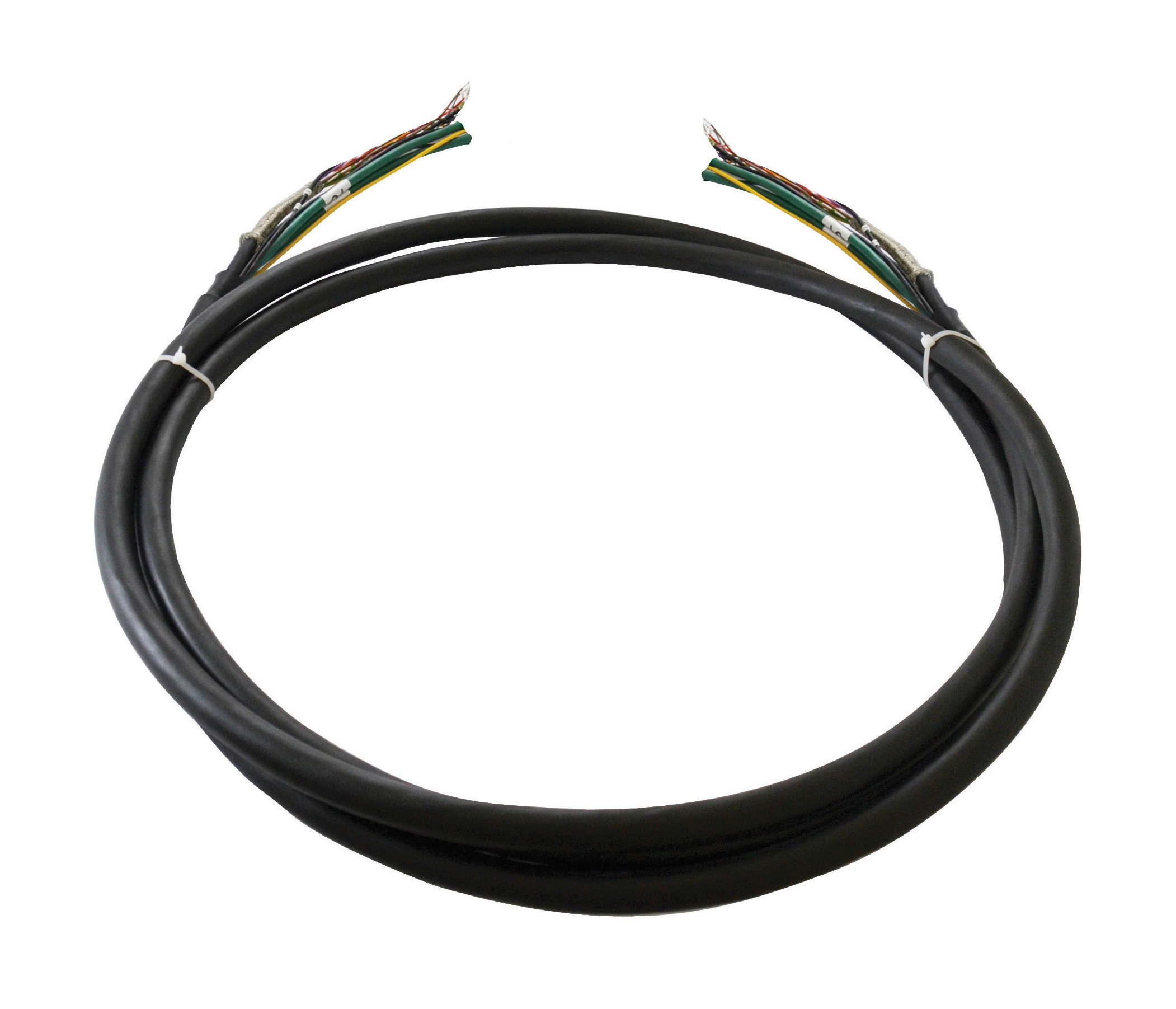

Armerad kombinerad Nätverk/Spännings kabel 3x1+1 Ethernet /m
340 SEK
Armoured Ethernet /Power cable 3x1+1 Ethernet
Prepared for Ethernet, video, I/O and telemetry connections
Resistant to oil, flames and ultra-violet rays
Designed for potentially explosive zones
- Betala säkert med kort
- Maila oss, vi svarar snabbt!
Beskrivning
Art.nr: CMAN0400
GENERAL
Armoured black cable: 1 Ethernet cable, 3 power supply conductors
MECHANICAL
Armoured cable
External diameter: 18.6mm (0.73in) ± 0.2mm (0.008in)
Diameter under armature: 13.8mm (0.54in) ± 0.2mm (0.008in)
Minimum bending radius: 186mm
Colour: Black (RAL9005)
ELECTRICAL
Power supply
Number of conductors (electrical): 3
Section: 1mm² (17AWG)
Working voltage: 300V max
NETWORK
Ethernet: 1 cable, Category 5E, shielded cable
ENVIRONMENT
Temperature: from -40°C (-40°F) up to +90°C (194°F)
Type of laying: fixed installation
Oil resistant (complies with VDE 0472/803B)
UV resistant (complies with IEC60068-2-5)
Flame resistant (complies with IEC/EN60332-1-2, IEC/EN60332-3-22)
COMPLIANCE
IEC/EN 60079-14 (ATEX Ex II)
